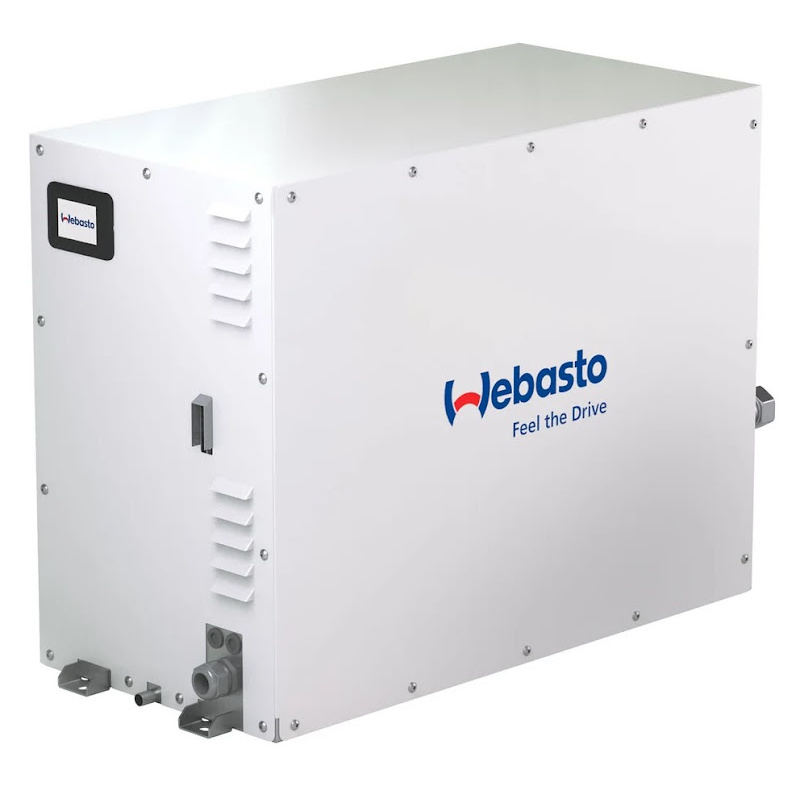

Webasto Blue Cool VX36 Air Conditioning Unit

Product code: 2510530A

The Webasto BlueCool VX-Series sets a new standard for
marine air conditioning. Designed for yachts and boats,
these variable speed chiller systems offer exceptional
cooling performance, intelligent features, and spacesaving
design. The VX-Series features advanced variable
speed compressors, ensuring efficient cooling across a
wide range of conditions.

£9,332.64 inc vat £7,777.20 ex vat

1 in stock


We accept the following payment methods: Logos for Visa, Mastercard, American Express, PayPal, Apple Pay, Google Pay, CB

Description

Specification VX 36M
Cooling Capacity [BTU/h] [kW] 3,400 – 36,000 (1 – 10.5)
Heating Capacity [BTU/h] [kW] (Reverse Cycle mode) 44,400 (12.9)
Dimensions (H/W/L) [mm] [Inch] 533 x 352 x 378 (21 x 13.9 x 14.9)
Voltage/Phase 230V 1-Phase
Frequency [Hz] 50 / 60
Current draw running [A] 3 – 13.5 (max. 15)
Current draw ECO mode (1 – 2 – 3) [A] 10 – 7 – 4.3
Current draw Start [A] 3
Chilled water connection [mm][inch] IG 25 – BSPP Female 1″
Sea water connection [l/min] IG 19 – BSPP Female 3/4″
Minimum flow rate SW / CW [l/min] 40 / 33
Weight [kg] 49
Energy Efficiency (EER) Up to 4.3
Refrigerant / GWP R32 / 675

Additional information

Weight 49000 g
Dimensions 53.3 × 35.2 × 37.8 cm
Description

Description

Specification VX 36M
Cooling Capacity [BTU/h] [kW] 3,400 – 36,000 (1 – 10.5)
Heating Capacity [BTU/h] [kW] (Reverse Cycle mode) 44,400 (12.9)
Dimensions (H/W/L) [mm] [Inch] 533 x 352 x 378 (21 x 13.9 x 14.9)
Voltage/Phase 230V 1-Phase
Frequency [Hz] 50 / 60
Current draw running [A] 3 – 13.5 (max. 15)
Current draw ECO mode (1 – 2 – 3) [A] 10 – 7 – 4.3
Current draw Start [A] 3
Chilled water connection [mm][inch] IG 25 – BSPP Female 1″
Sea water connection [l/min] IG 19 – BSPP Female 3/4″
Minimum flow rate SW / CW [l/min] 40 / 33
Weight [kg] 49
Energy Efficiency (EER) Up to 4.3
Refrigerant / GWP R32 / 675
Additional information

Additional information

Weight 49000 g
Dimensions 53.3 × 35.2 × 37.8 cm
