Spare Parts for the Side-Power SE130 Thruster

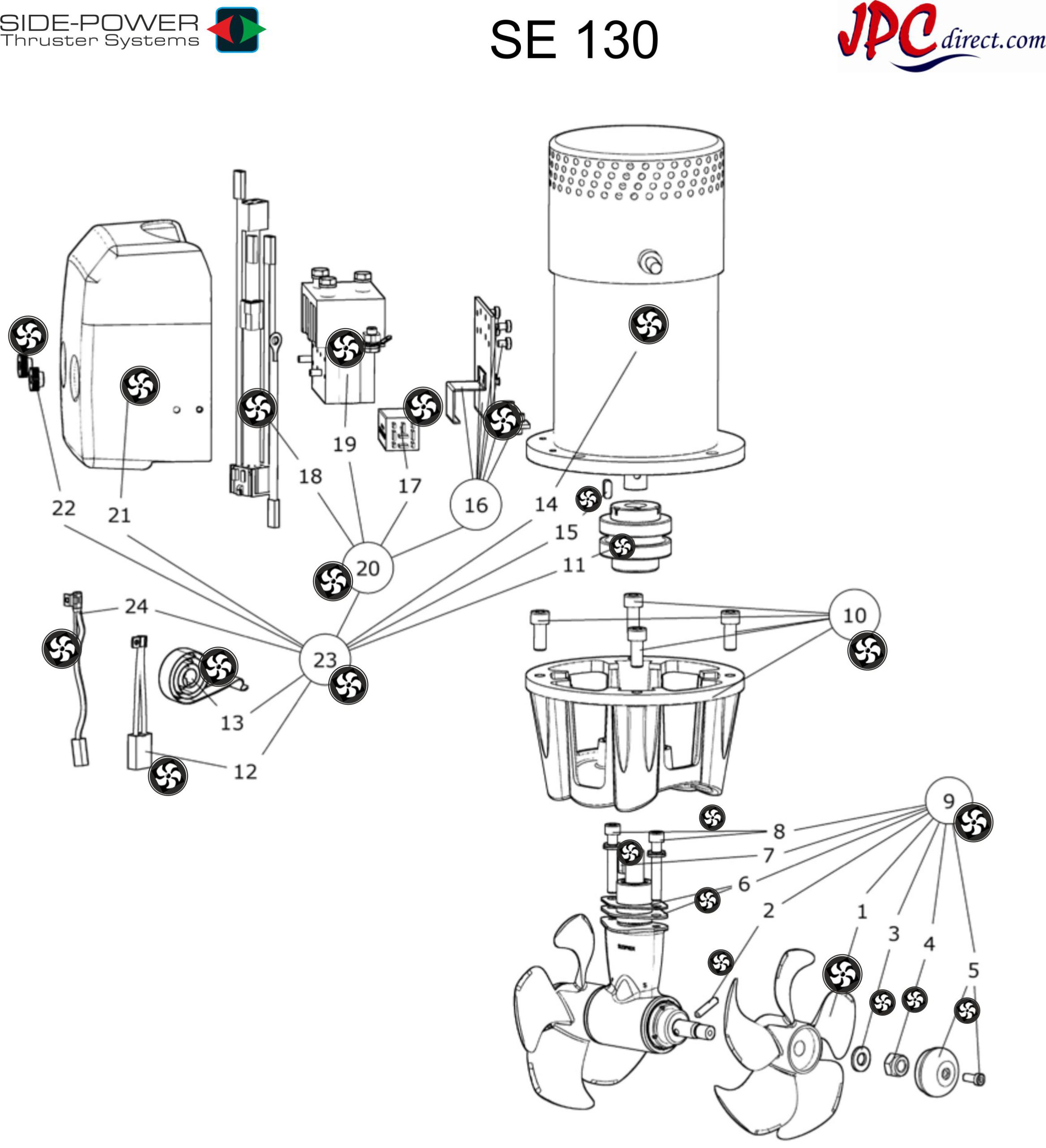

Use the diagram and the key below to find spare parts for the Side-Power SE130 Thruster.
Not sure which parts you need? Call us on 01603 784884 and we’ll be happy to help.

CLICK on the links below to find the parts you need.

1. Propeller (x 2) – 101271RH
2. Propeller drivepin – 91241
3. Propeller washer – 201181
4. Locknut – 101260
5. Anode – 201180A
6. Gasket – 90610
7. Driveshaft key – 101440
8. Gearleg bolt – 101080
9. Complete gearleg – 90601
10. Complete motor bracket – 100501
11. Complete flexible coupling – 71463
12. Brushes – 12v (x4) – BRUSH-05S
Brushes – 12v(x8) – BRUSH-08K
Brushes – 24v (x8) – BRUSH-06S
Brushes – 24v (x4) – BRUSH-09K
13. Brush springs – 12v (x8) – SPRING-03S
Brush springs – 24v (x4) – SPRING-04S
14. Electric motor – NOT AVAILABLE
15. Key for electric motor shaft – 101440
16. Solenoid bracket kit 12v – 10013524
17. Electronic control box – 61232i
18. Internal wiring loom – 151273B
19. Solenoid 12v – 1013713
Solenoid 24v – 41371243
20. Complete solenoid kit 12V – 9013112
Complete solenoid kit 24V – 9013124
21. Solenoid cover – 92026
22. Complete electric motor assembly 12V – 9010112
Complete electric motor assembly 24V – 9010124
23. Thermal cutout switch – THERM09S
