The Webasto Air Top 2000 STC is the modern benchmark for compact, quiet marine and vehicle diesel heating. Boasting a digital W-Bus connection for advanced MultiControl thermostats and utilizing a highly efficient fuel delivery system, it offers whisper-quiet heat on the water.

However, marine environments, damp sea air, and heavy seasonal usage will eventually lead to soot build-up or component wear. To keep your heating system running cleanly and safely, this guide pairs common heater symptoms with the exact genuine Webasto Air Top 2000 STC spare parts required to resolve them.

Quick Diagnostic & Troubleshooting Guide

Before ordering parts, use this diagnostic chart to cross-reference your heater’s symptoms with the correct internal components.

Heater SymptomLikely Failing ComponentRecommended Technical Action
Smoke on startup / Failing to ignite (Fault F01)Glow Plug / Glow PinClear combustion chamber carbon or replace the glow pin.
Flame drops out during running cycle (Fault F02)Flame Sensor (Photocell/PTC)Clean soot off the sensor lens or renew the assembly.
Cutting out due to overheating (Fault F03 / F05)Air Fan / Temp SensorCheck for 60mm duct obstructions or replace the sensor.
White smoke or clicking fuel system issuesDP42 Fuel Metering PumpInspect fuel line connections or replace the dosing pump.

Core Internal Replacement Parts

If your diagnostics indicate internal carbon buildup or electrical failure, you will need to open the heat exchanger casing. Ensure you replace your internal components with genuine Webasto parts to preserve the airtight design of the combustion chamber.

Glowpins & Flame Sensors

The Air Top 2000 STC relies on a specialized glow plug element to vaporize and ignite the incoming diesel fuel during the startup cycle. If the glow pin fails to reach its designated ignition temperature, the digital ECU will initiate a safe shutdown sequence.

Burner Inserts & Cartridges

Within the main burner core, diesel is distributed across an ultra-fine mesh metal screen inside the combustion tube. Over time, marine diesel can leave carbon crusts on this screen, preventing proper fuel atomization and causing flame failures.

Essential Maintenance: Gaskets & Drive Assemblies

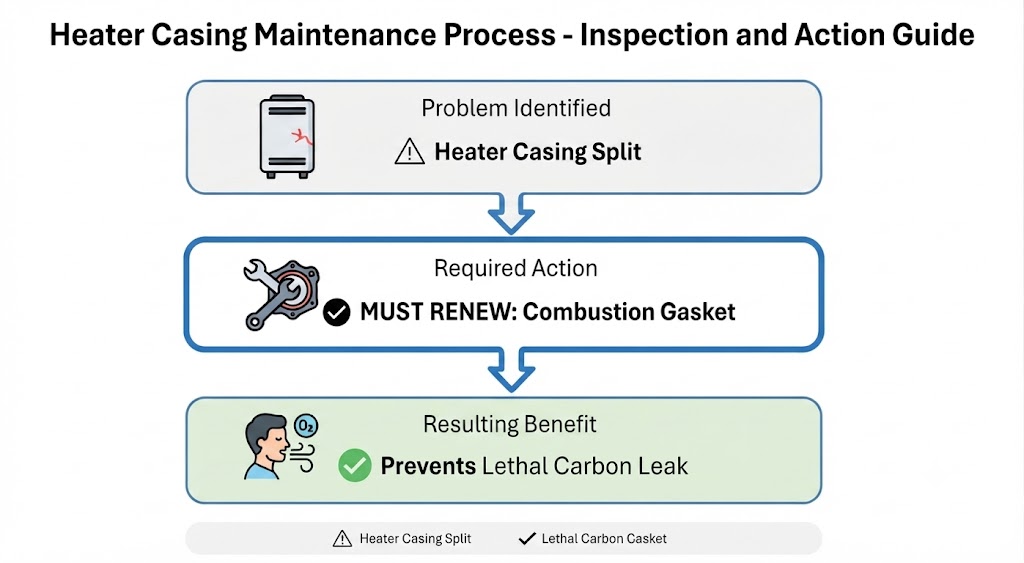

Whenever you disassemble any part of your Air Top 2000 STC casing to service the burner or clear out heavy soot accumulations, you must use fresh sealing materials.

Critical Safety Rule: Never reuse old internal gaskets. Reusing worn gaskets allows raw combustion exhaust gases to escape directly into your boat’s clean cabin heating ductwork.

Air Intake Fans & Drive Motors

The drive assembly contains the electric motor, the combustion air intake fan, and the principal hot air distribution blower. If your fan bearings begin to seize, the heater will lock out automatically due to thermal restriction.

External Ducting, Outlets & Vents

Keeping the hot air circuit completely free-flowing protects the internal components from high-temperature stress. The Air Top 2000 STC uses a standard 60mm ducting framework, but can be customized with various distribution outlets.

  • 60mm vs 90mm Systems: Ensure your main outlets are unclosable to prevent accidental heat bottlenecks.

  • Y-Pieces & Directional Vents: Use smooth 45° or 90° splitters to preserve static air pressure across long runs.

Webasto Air Top 2000 STC FAQs

Can I use my old Air Top 2000 ST fuel pump on the newer STC model?

No, the STC model requires the newer DP42 fuel dosing pump. The older ST model used the DP30 pump, which operates on a completely different electrical frequency. Attempting to run a DP30 pump on an STC heater will cause fuel starvation, heavy carbon buildup, or instant fault codes.

How often should I service my Webasto Air Top 2000 STC?

We recommend servicing your heater every two years, or annually if you live aboard your boat. A standard service involves opening the casing, clearing out carbon soot deposits from the burner mesh, inspecting the glow pin, and replacing the critical combustion chamber gasket.

Why is my Webasto Air Top 2000 STC blowing cold air?

If the heater blows cold air, it has likely entered a cool-down cycle after an ignition failure or an overheat shutdown. The system runs the fan to safely purge heat and unburnt fuel vapors before registering a fault code on your digital controller.

Do I need to replace the gaskets every time I open the heater?

Yes, you must always replace the internal gaskets when opening the heater. Reusing compressed or old gaskets compromises the tight seal of the combustion chamber, which can allow dangerous carbon monoxide exhaust gases to leak directly into your vehicle or boat cabin.
