For live-aboard boaters, narrowboat owners, and coastal cruisers, maintaining a warm, dry cabin is a priority. While air heaters are excellent for rapid cabin warming, a hydronic (water-based) heating system like the Webasto Thermo Top EVO provides ultimate luxury. It acts just like a home central heating system, quietly pumping hot water through radiators, towel rails, and even integrating with your boat’s calorifier (hot water tank) for piping hot showers.
As an authorized Webasto partner for over a decade, our team at JPC Direct knows these units inside out. If you are planning a DIY installation or simply want to understand how our marine engineers build these systems, this guide breaks down the core structural steps to achieving a safe, reliable set-up.
Is the Webasto Thermo Top EVO Right For Your Boat?
The Thermo Top EVO (5kW heat output) is ideally engineered for compact to medium-sized vessels up to roughly 50 feet.
It is perfect for:
- – Narrowboats and Cruisers: Providing evenly distributed radiator warmth from bow to stern.
- – Live-aboards: Boaters who require constant domestic hot water alongside space heating.
- – Multi-Cabin Vessels: Where running large, rigid hot-air ducting through bulkheads is physically impossible. Water lines are significantly smaller and easier to route.
The 5-Step Webasto Thermo Top EVO Installation Process
Installing a marine water heater requires balancing plumbing, electrical, fuel, and exhaust connections. To ensure peak reliability and safety, follow these steps in order.

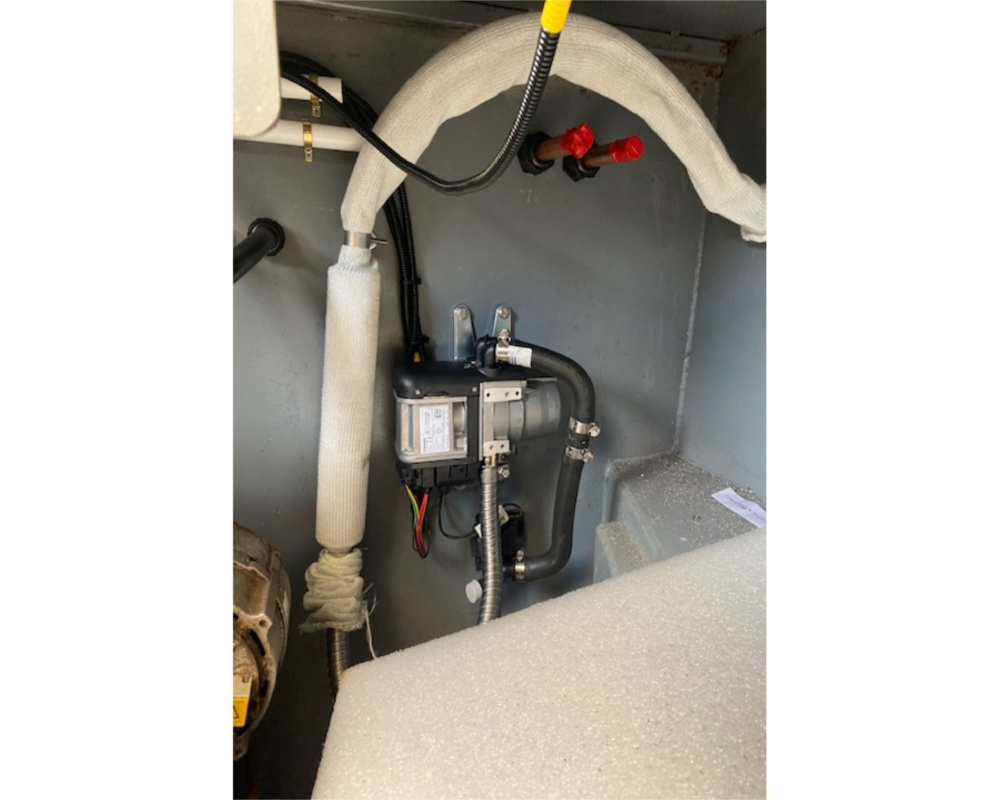

Step 1. Select and Mount The Base Unit
Find a dry, protected location like a lazarette or engine room that is well clear of gas storage. Mount the heater as low as possible in the vessel using the heavy-duty bracket. Keeping it low is critical because the included coolant circulation pump is not self-priming and relies on gravity to stay flooded.
Step 2. – Plumb the Coolant Circuit
Route your plumbing lines to connect the heater to your matrix blowers, towel rails, radiators, or your water calorifier. Use high-grade marine hose and ensure the loop includes a header tank at the highest point of the system to facilitate easy automatic air-bleeding during operation.
Step 3. – Install the Marine Exhaust System
Connect the 24mm stainless steel exhaust pipe. For safety, you must create a “swan neck” (an upward loop) in the pipe right before it reaches the hull skin fitting to prevent water ingress from waves. Wrap the entire exhaust pipe length in a woven glass insulating sock to protect nearby components from high temperatures.
Step 4. – Integrate the Fuel Supply
Mount the Webasto fuel dosing pump externally using its rubber anti-vibration mount to keep clicking noises out of the cabin. Run the copper or rigid plastic fuel lines from your primary diesel tank. Ensure all connections utilize fuel-grade rubber sleeves and secure clips to prevent air leaks.
Step 5. – Connect Electrics and Controllers
Route the wiring loom back to your boat’s main 12V or 24V battery bank, incorporating the specified inline fuses. Connect the digital MultiControl panel or modern SmartControl unit inside your main cabin living space to complete the system circuit.
Safety Checks for Boat Safety Scheme (BSS) Compliance
When installing any diesel-fired appliance on a vessel in the UK, your installation must adhere to strict safety codes. Skipping these details can cause your boat to fail its next BSS inspection:
- – Leak-Proof Exhaust Joints: Every single exhaust connection must be completely gas-tight using correct exhaust paste and heavy-duty clamps. Carbon monoxide poisoning is a major hazard. All exhaust work should preferably be undertaken by a qualified professional.
- – Transom Skin Fittings: Ensure your hull exhaust skin fitting is positioned high enough above the waterline to avoid being submerged by the boat’s bow wave or heavy beam seas.
- – Fire-Resistant Fuel Lines: Use proper marine-grade fuel lines that can withstand high temperatures without degrading.

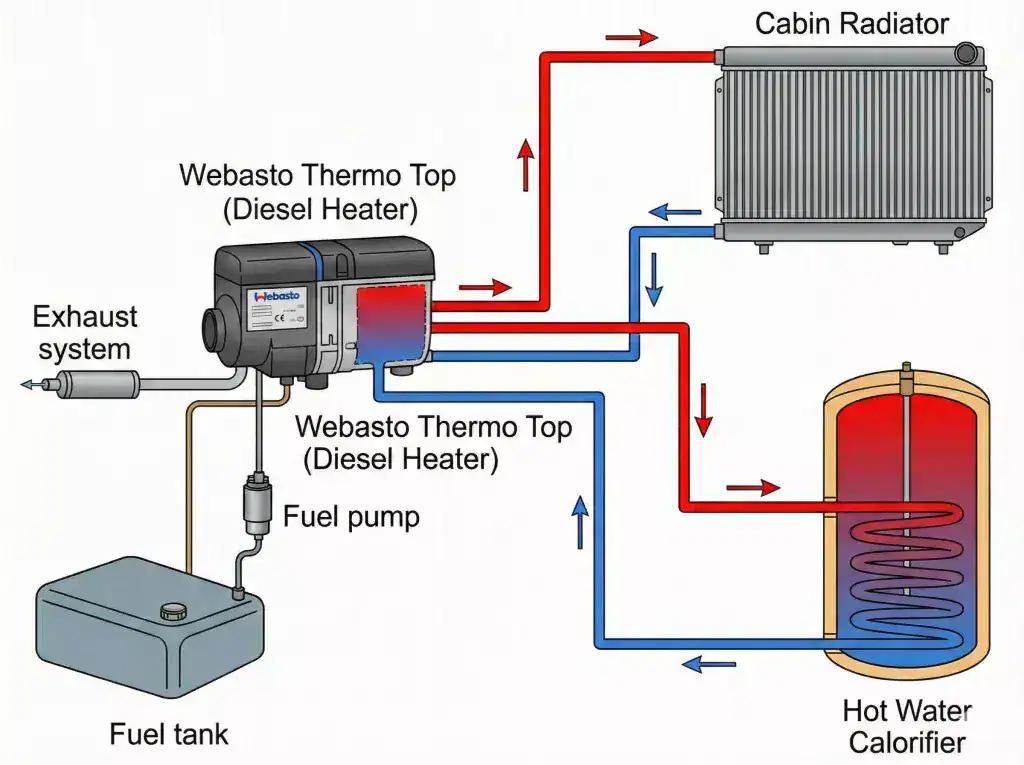

Webasto Thermo Top EVO System Diagram
Webasto Thermo Top EVO Installation – FAQs
Can I run a Webasto Thermo Top EVO while the boat is underway?
Yes, you can safely operate the heater while cruising. The Thermo Top EVO features auto-sensing electronics and a rugged fuel dosing pump that maintain a stable burn, providing consistent hot water and radiator heating regardless of engine use, boat speed, or rough water conditions.
How much fuel does the Webasto Thermo Top EVO consume?
The Thermo Top EVO is highly efficient, burning between 0.12 and 0.62 litres of diesel per hour. Fuel consumption adjusts automatically depending on heating demand; the unit burns more during initial startup to heat cold water loops, then scales down once your cabin reaches the target temperature.
Does the Webasto Thermo Top EVO need specific antifreeze?
Yes, the system must run a high-quality ethylene glycol-based antifreeze mixed with clean water, typically at a 30% to 50% concentration. This fluid keeps the internal plumbing lines completely protected against freezing winters, prevents internal system corrosion, and lubricates the circulation pump seals effectively.
What is the main difference between Webasto Air Top and Thermo Top heaters?
Air Top units are dry forced-air blowers that heat cabin spaces quickly through wide internal ducting. Thermo Top units are wet hydronic heaters that warm a liquid coolant loop, allowing you to connect real radiators and domestic hot water calorifiers for a home-like central heating experience.
